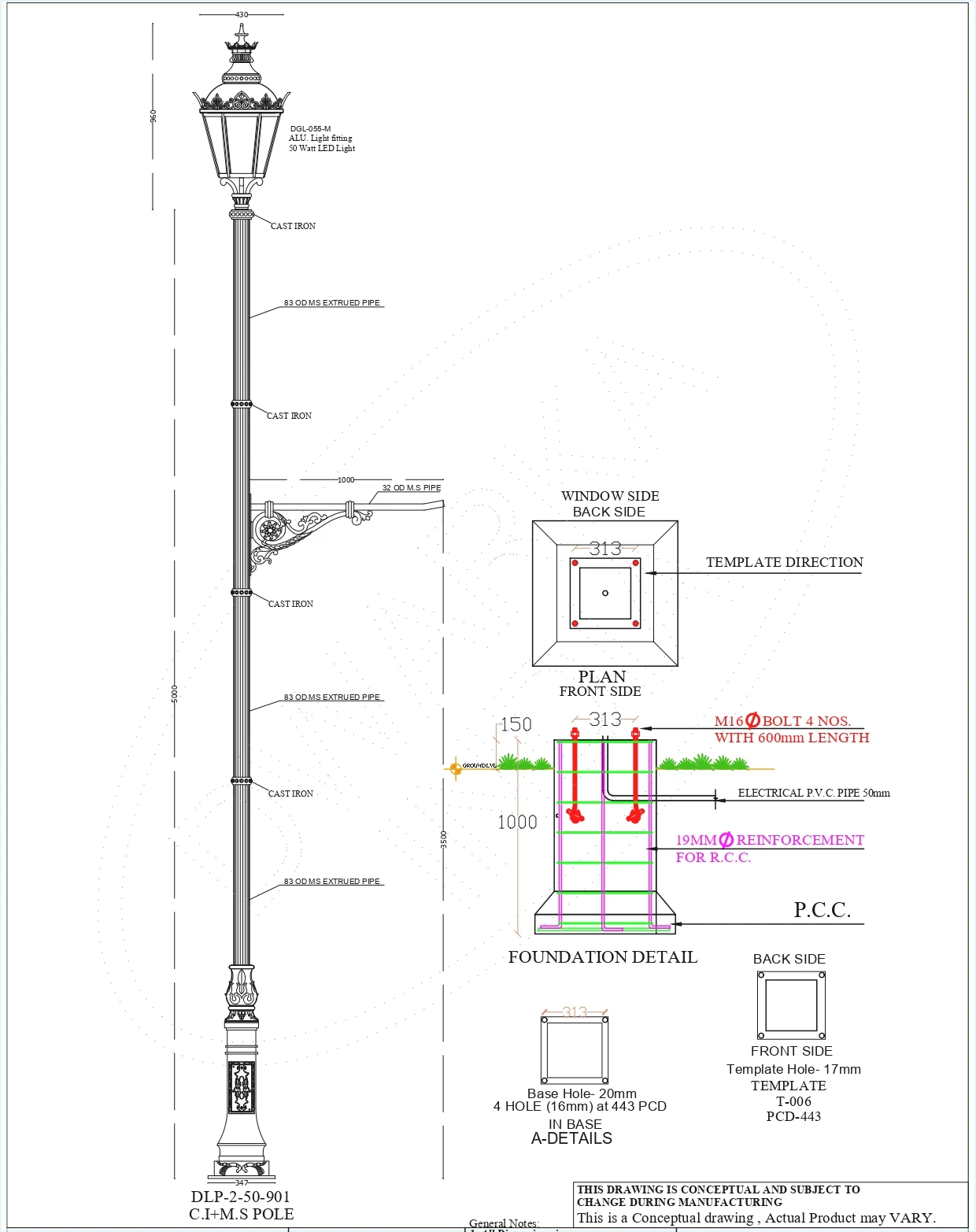

This engineering drawing illustrates a heritage- style outdoor decorative lighting pole featuring a 50-watt LED aluminum light fixture and an integrated side bracket arm. The assembly stands approximately 5 meters tall with alternating mild steel (MS) extruded pipes joined by cast iron ornamental collars and a heavy cast base.s Homdec Lighting
Key Specifications
Fixture: aluminum housing with a 50W LED luminaire.
Main Shaft: 83 mm Outer Diameter (OD) MS extruded pipes coupled with cast iron connectors.
Side Arm: 32 mm OD MS pipe projecting 1,000 mm outward from the main column.
Dimensions: Total height of 5,000 mm with the side bracket mounted at a 3,500 mm elevation from the base.
